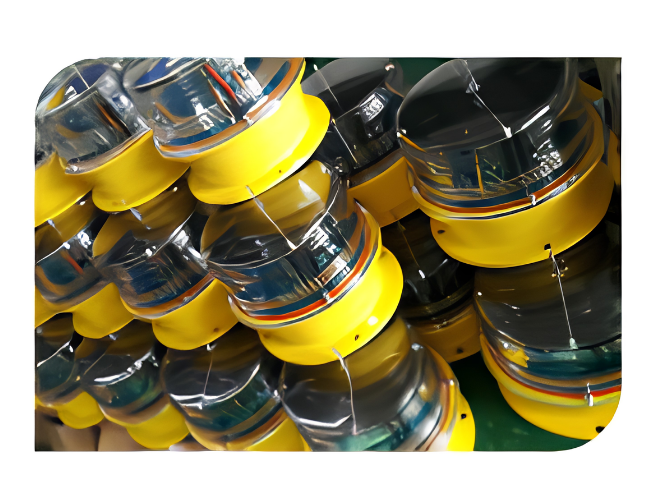

AML-C LED Solar Powered Marine Lanterns
This LED Marine Lanterns is completely self-containedlantern, adopting insert high efficient solar panelsintegrated design, cooperate with solar dedicatedlithiumion battery as power supply.
It is full-sealed structure ensure(IP68) no water goinside.There is a ON/OFF button under base make local controleasier.
Compliance: IALA E-200-1
Electrical
- Based on LED technology, and its color complies to IALARecommendations E-200-1.
- LED technology reduces maintenance time & costs
Physical
- Integrated design, enabling a rugged and completely waterproof
seal capable of prolonged and deep immersion (IP68). - PC housing,UV resistance, shockproof and corrosionproof.
- Bird deterrent spike
- Powder coated die casting aluminum base
- Built-in mono-crystalline silicon solar panel, conversionefficiencyisbetter than poly-crystalline silicon
System design
- Built-in photocell for day/night operation(dusk to dawnoperation)
- Flashing rate: 20FPM(Other flashes is optional)
- ON/OFF button interface located under base
Optional
- External battery charger
- Flashing rate optional
- IR Programmer for IALA 366 light characters adjustable
- GPS sync flashing

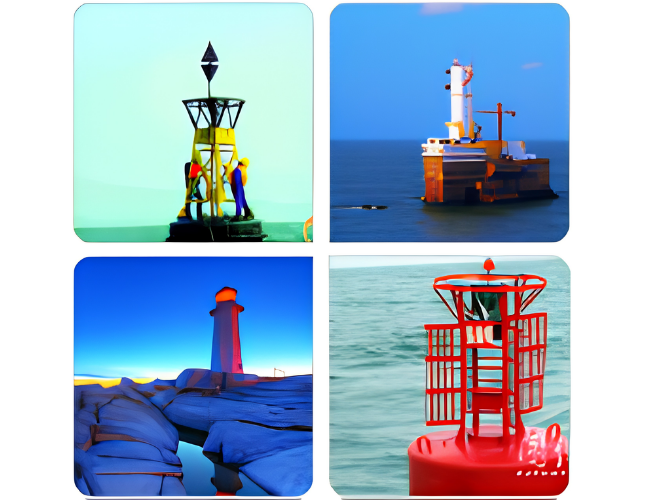

AML-C Solar Marine Lantern is used on buoy, light houseandany other off shore site for marine/river safe navigation.
Light Characteristics
Light Source: LED
Available Colors: Red, Green, Yellow, White, Blue
Visible Range(NM): 1-3 (AT@0.74)
Horizontal Output(degrees): 360
Vertical Divergence(degrees): 7
Flash Characteristics: FL3S(0.2,2.8) (others are optional)
Operation Mode: Dusk-to-dawn Automatically (Built-in photocell)
LED Life Experience(hours): >100,000
Electrical Characteristics
Operating Voltage: 3.7Vdc
Circuit Protection: Integrated
Solar Characteristics
Solar Module Type:n Mono-crystalline Silicon
Output(watts): 1.8
Charging Regulation: Microprocessor controlled
Battery Characteristics
Battery type: Lithium ion battery(Ni-MH is optional)
Nominal Voltage (V): 3.7
Battery Service Life: Average 3 years
Autonomy (hours) – Steady: 60 Flashing: 150(duty cycle:12%)
Physical Characteristics
Body Material: UV protected Polycarbonate
Base Material: Powder-coated Die-casting aluminum
Mounting(mm): 140×140-4×M6
Dimension(mm): 162×162×160
Weight(kg): 1
Product Life Expectancy: Average 5 years
Environmental Factors
Humidity: 0~100%
Wind Speed: 80m/s
Waterproof: IP68
Compliance
IALA: Signal colors complying to IALAE-200-1
Options Available
Charging port
Flashing rate
IR Programmer for IALA 366 light characters
GPS sync flashing
- Datasheet: English
