Aeromarine Lanterns
Aeromarine Lanterns

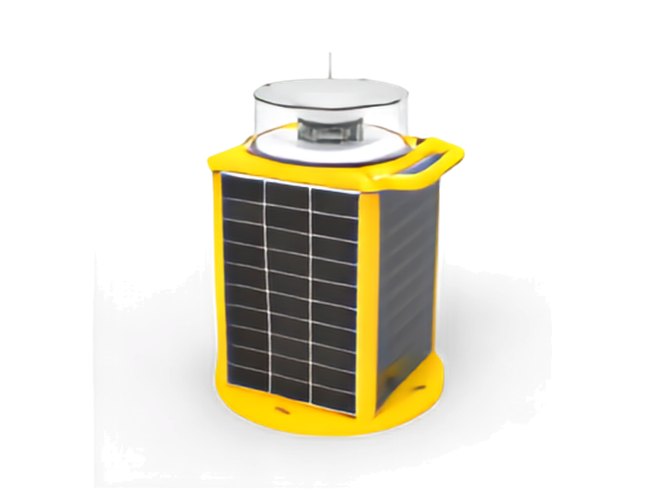

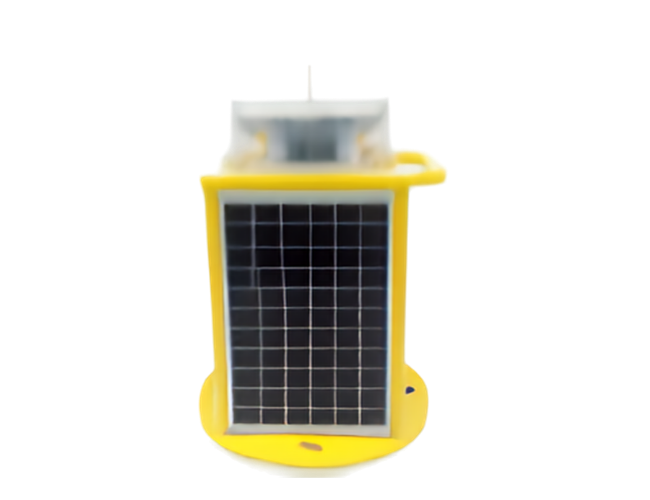

AML-S7 LED Solar Powered Marine Lanterns
This LED Marine Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles.
CREE Ultra high intensity LED is used as light sourcewhich make performance better.
There is no need to open the light, the light flashing characteristics(IALA 366 flashes) could be remote controlled by IR Programmer easily.
GSM Monitoring as optional function, when fault happens,it will send out text message automatically.
Compliance
- IALA E-200-1
- CE
Electrical
- Based on LED technology, and its color complies to IALA Recommendations E-200-1.
- LED technology reduces maintenance time & costs
Physical
- PC housing, UV resistance, shockproof and corrosion proof.
- Bird deterrent spike
- Powder coated die casting aluminum base
- 4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
System design
- Solar panel as photocell for day/night operation(dusk todawn)
- The flashing rate(Fixed mode included) is adjust by IR programmer.
- If the ender user will use the fixed mode as the final working mode, please inform us before order.
Optional
- Charging port & External battery charger
- GSM Cellphone Monitoring
- RS232 communication port
- GPS Sync flashing
AML-S7 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.
Light Characteristics
Light Source: LED
Available Colors: Red, Green, Yellow, White, Blue
Visible Range(NM): 3-8NM available (Standard：4-5NM)
Horizontal Output(degrees): 360
Vertical Divergence(degrees): ≥10°or ≥5°
Flash Characteristics: Adjustable 366 IALA light characteristics
Operation Mode: Dusk-to-dawn Automatically (Built-in photocell)
LED Life Experience(hours): >100,000
Electrical Characteristics
Operating Voltage: 7.4Vdc or 12Vdc
Circuit Protection: Integrated
Solar Characteristics
Solar Module Type:n Mono-crystalline Silicon
Output(watts): 5W *4
Charging Regulation: Microprocessor controlled
Battery Characteristics
Battery type: Lithium ion battery(Ni-MH is optional)
Battery Capacity (Ah): 12AH as standard(Others are customized)
Nominal Voltage (V): 7.4V or 11.1V
Battery Service Life: Average 5 years
Autonomy (hours) – ≥15days(Duty cycle=20%, Longer is customized)
Physical Characteristics
Body Material: UV protected Polycarbonate
Base Material: Powder-coated Die-casting aluminum
Mounting(mm): 200×200×Φ12
Dimension(mm): 250×250×370
Weight(kg): 5.5
Product Life Expectancy: ≥10 years
Environmental Factors
Humidity: 0~100%
Wind Speed: 80m/s
Waterproof: IP68
Temperature(℃): -20~80
Compliance
IALA: Signal colors compliant to IALA E-200-1
CE
Options Available
GSM Cellphone Monitoring
GPS Sync flashing
Charging port & External battery charger
- Datasheet: English
