Mooring Buoys
Mooring Buoys

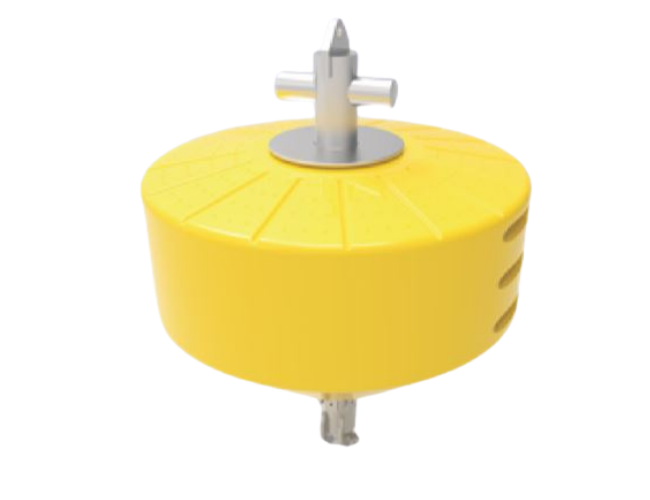

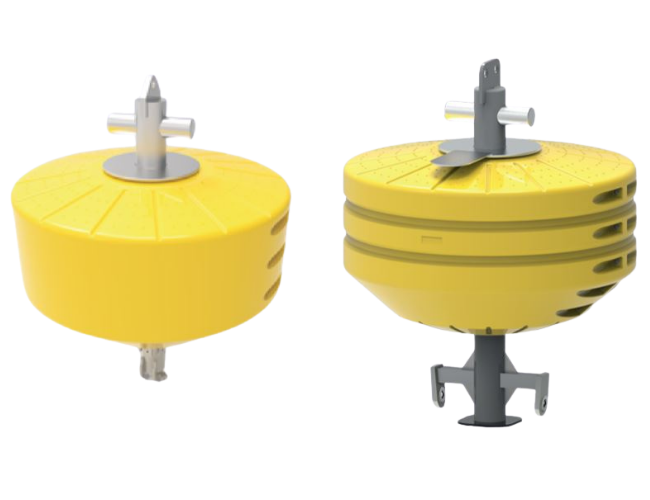

AMB-MB 2000
AMB-MB 2000 Mooring Buoys are designed and developed in accordance with IALA guidelines using our four decades of experience and technology expertise our goal is to supply Install and commission the most advanced and best quality to our customers.
AMB buoy comes with advantage of Zero maintenance easy to service and made of recyclable that makes it environmentally friendly.
The AMB-MB 2000 can be supplied in all IALA colours and configurations.
- Available in all colours and configurations as per IALA recommendations
- Environmentally friendly and recyclable
- Life over 20 years
- Customized mould-in graphics available
TECHNICAL SPECIFICATIONS – SINGLE POINT
| Specification | Details |
|---|---|
| Total Float Volume | 2928 ltrs |
| Nominal Freeboard | 740 mm |
| Nominal Draft (Water Level) | 976 mm |
| Total Reserve Buoyancy | 2403 kgs |
| Material | Rotationally-moulded UV-stabilised 100% virgin polythene + High Tensile Steel mooring Post |
| Wall Thickness | 12 mm |
| Filling | Closed-Cell Polyurethane Foam |
| Total Height | 2413 mm |
| Width (Diameter) | 2000 mm |
| Mass | 598 kg |
TECHNICAL SPECIFICATIONS – DOUBLE POINT
| Specification | Details |
|---|---|
| Total Float Volume | 2928 ltrs |
| Nominal Freeboard | 720 mm |
| Nominal Draft (Water Level) | 1062 mm |
| Total Reserve Buoyancy | 2342 kgs |
| Material | UV Stabilised, 100% Virgin Polyethylene, Galvanised + High Tensile Strength Steel Mooring Post |
| Wall Thickness | 12 mm |
| Filling | Closed-Cell Polyurethane Foam |
| Total Height | 2504 mm |
| Width (Diameter) | 2000 mm |
| Mass | 659 kg |
