Mooring Buoys
Mooring Buoys

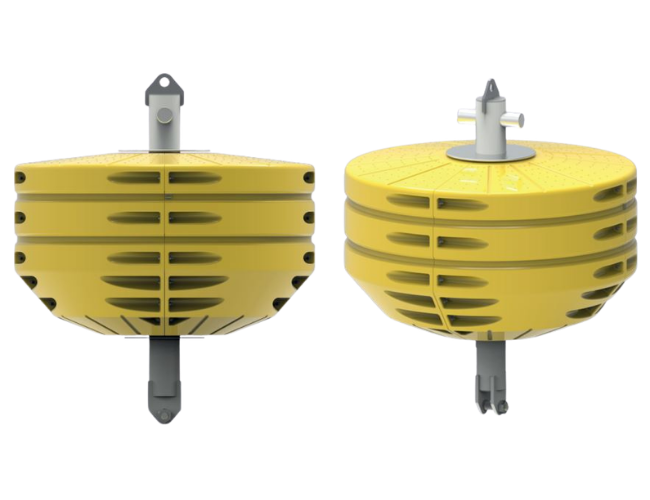

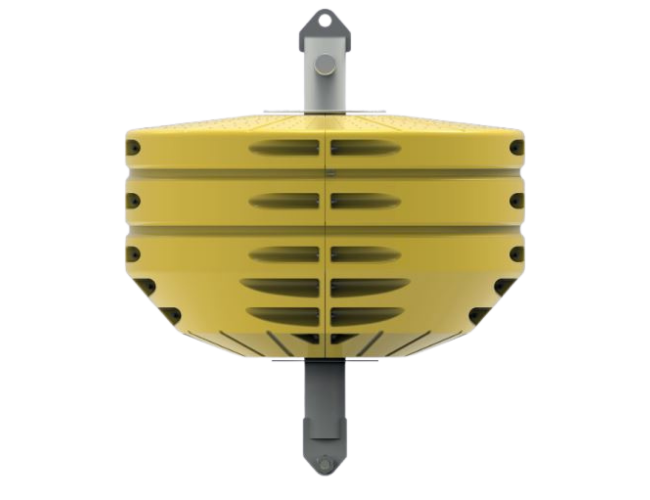

AMB-MB 2600
AMB-MB 2600 Mooring Buoys are designed and developed in accordance with IALA guidelines using our four decades of experience and technology expertise our goal is to supply Install and commission the most advanced and best quality to our customers.
AMB buoy comes with advantage of Zero maintenance easy to service and made of recyclable that makes it environmentally friendly.
The AMB-MB 2600 can be supplied in all IALA colours and configurations.
- Available in all colours and configurations as per IALA recommendations
- Environmentally friendly and recyclable
- Life over 20 years
- Customized mould-in graphics available
TECHNICAL SPECIFICATIONS
| Specification | Details |
|---|---|
| Total Float Volume | 6584 ltrs |
| Nominal Freeboard | 1050 mm |
| Nominal Draft (Water Level) | 1203 mm |
| Total Reserve Buoyancy | 5554 kgs |
| Material | UV Stabilised, 100% Virgin Polyethylene, Galvanised High Tensile Strength Steel Mooring Post |
| Wall Thickness | 14 mm |
| Filling | Closed-Cell Polyurethane Foam |
| Total Height | 3049 mm |
| Width (Diameter) | 2600 mm |
| Mass | 1194 kg |
